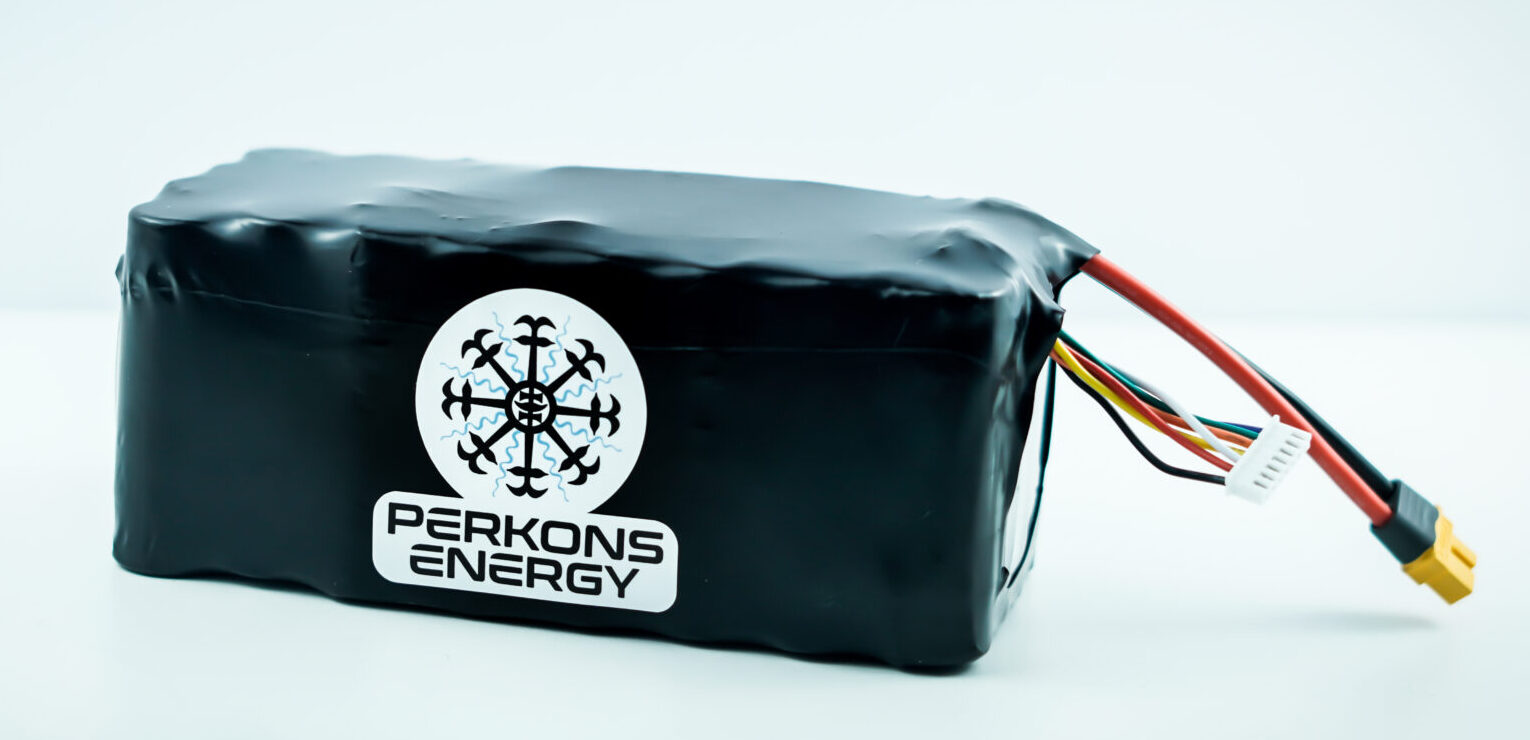

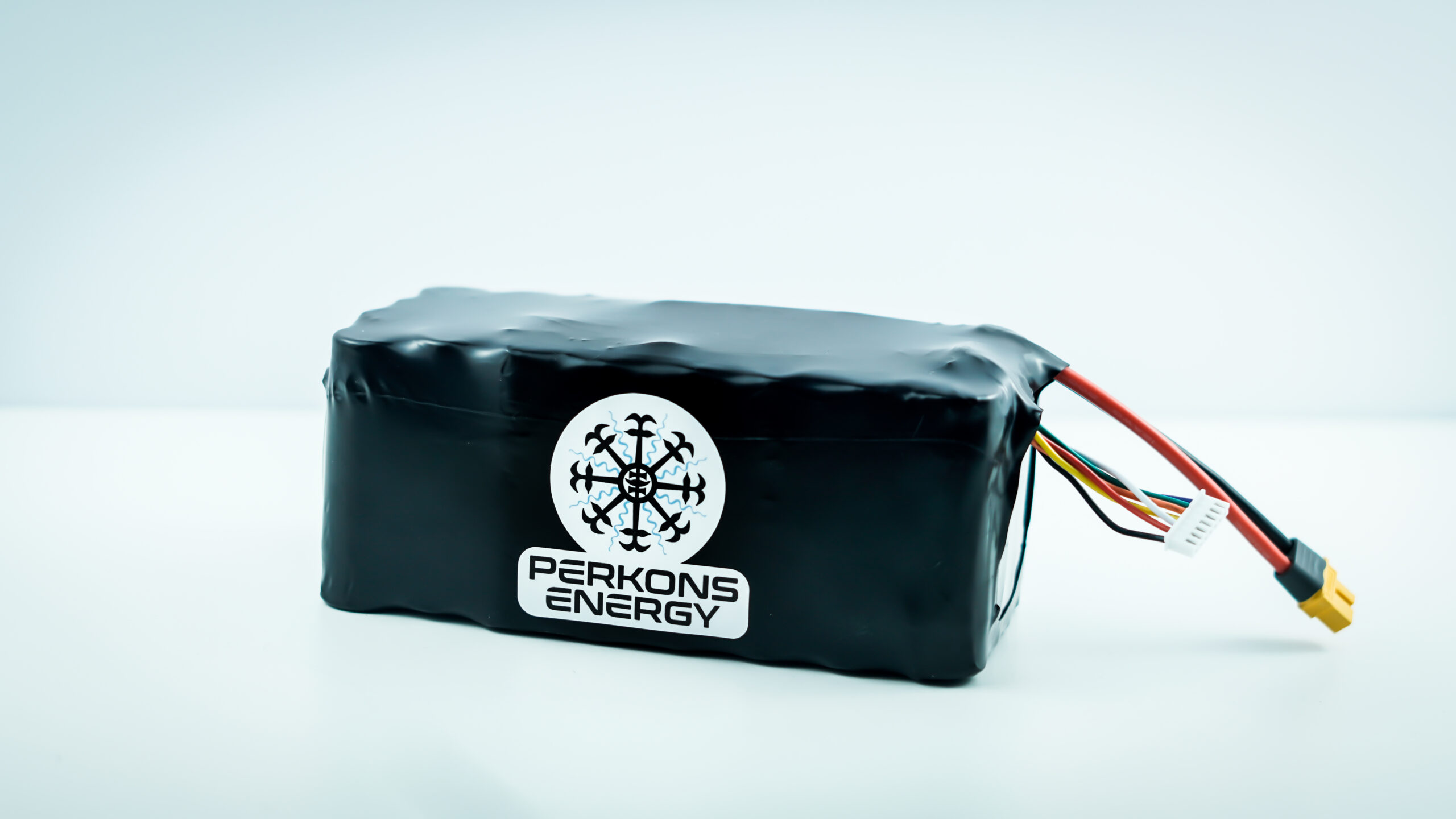

8S4P 20000

Engineered for demanding UAV and robotics applications. This pack offers an excellent balance of weight and capacity, using high-discharge cylindrical cells to ensure stable power delivery during peak loads.

Voltage

28.8 V

Capacity

20000 mAh

Weight

2336 g

Energy

576 Wh

Technical Specifications

Configuration

8S4P (8 Series, 4 Parallel)

Nominal Voltage

28.8 V

Nominal Capacity

20000 mAh

Capacity Wh

576 mAh

Cell Type

Cylindrical Li-ion

Continuous Discharge

280 A

Dimensions (L x H x W)

180x75x90mm

Weight

2336 g

Wire Gauge

10 AWG Silicone – any other by request

Main Connector

XT90-S (Anti-Spark) / XT60 (Optional) – any other by request

Balance Connector

JST-XH 7-Pin – any other by request
